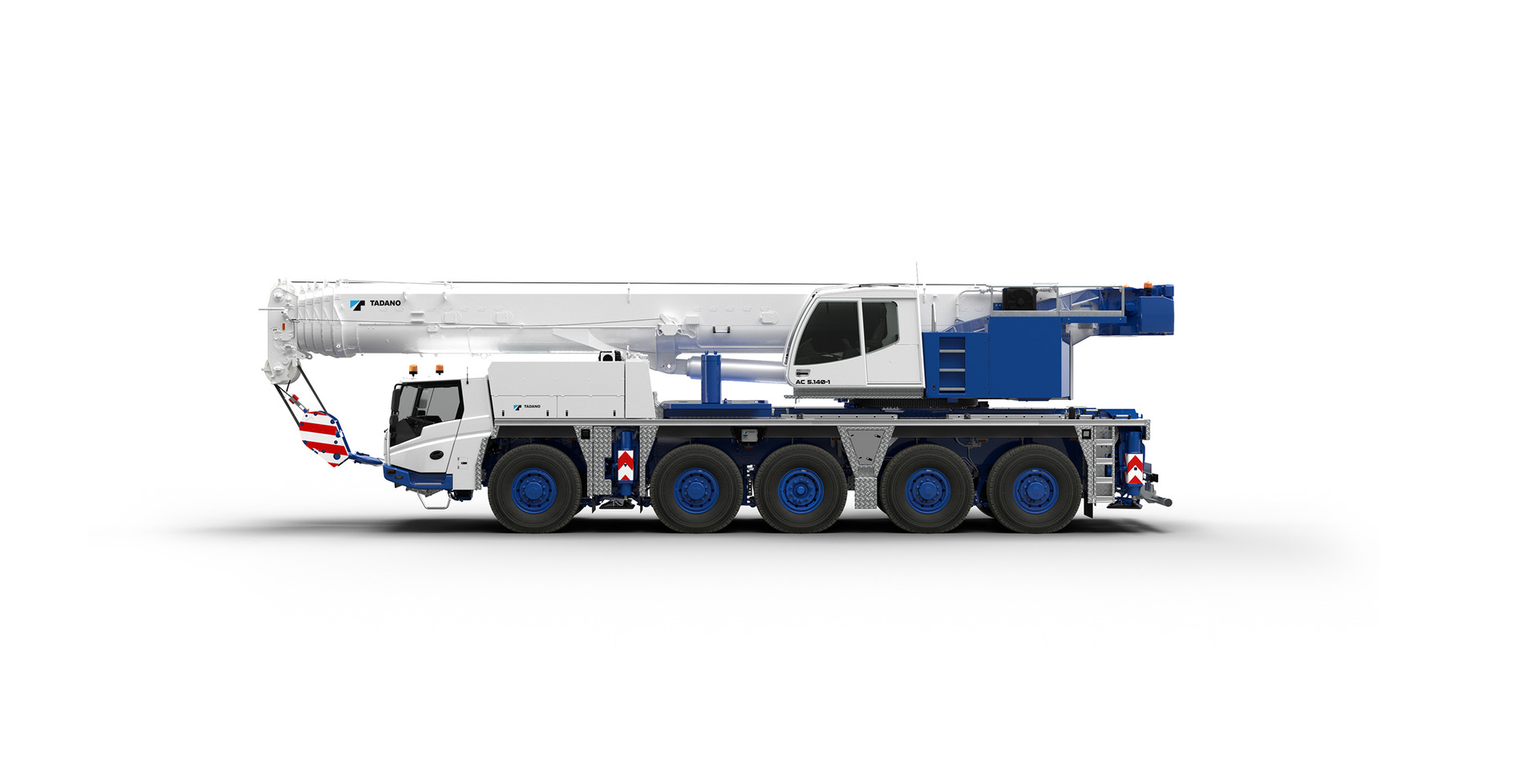

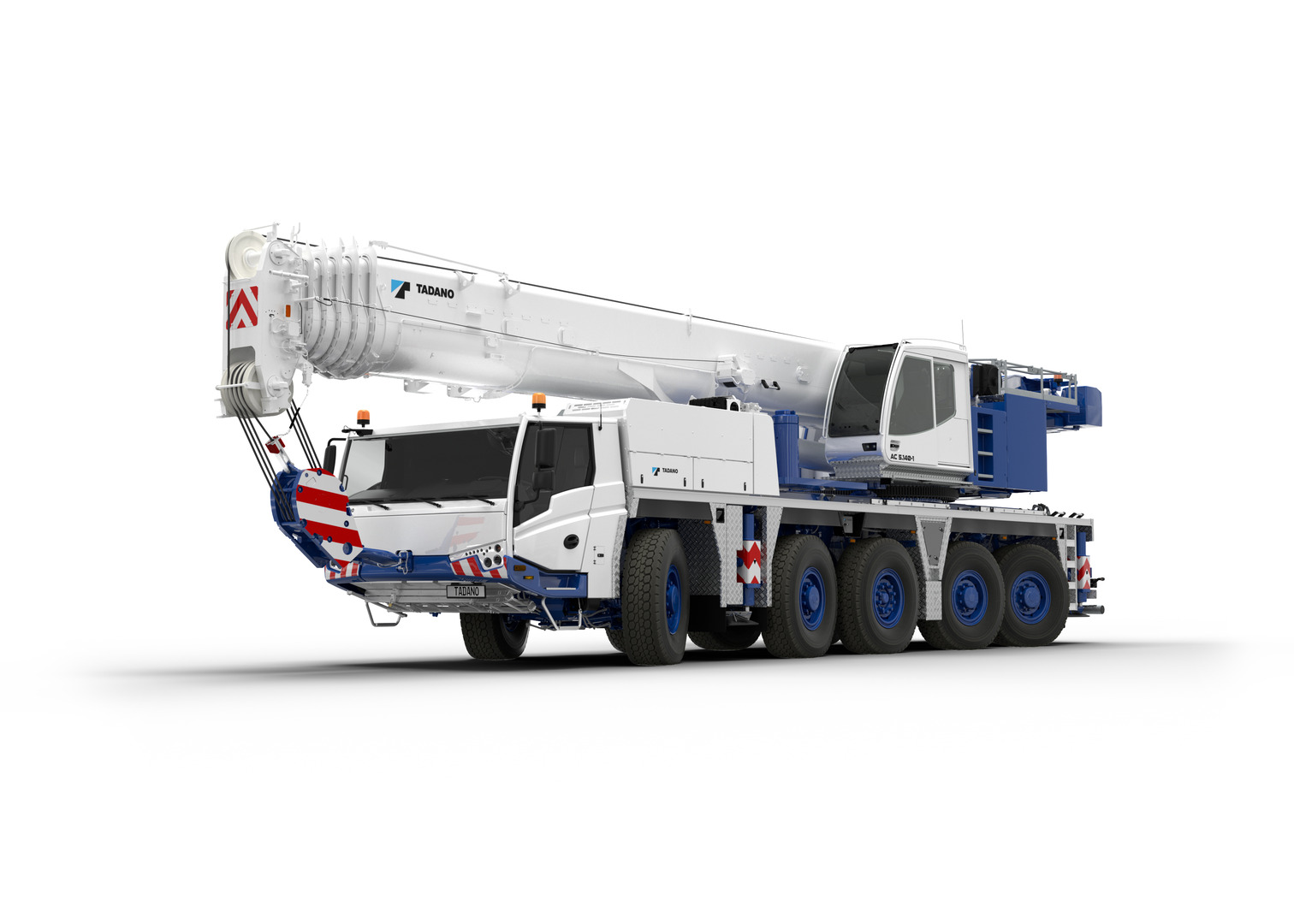

AC 5.140-1
Produkta apraksts
Top Efficiency, Capacity Utilization Across Multiple Scenarios A terrific crane for all-around use, the AC 5.140-1 is the strongest machine in the 140 t class. Its robust and agile undercarriage chassis, coupled with 72% gradeability, affords outstanding off-road mobility to reach and handle any construction site. The AC 5.140-1’s boom length is versatile for general construction, yet strong enough for heavy lifts including tilt-up panels. The bi-fold jib includes an integrated heavy lift jib which can be installed without a support crane and cover numerous load cases. The latest engine technology increases the operating volume, allowing inner cities to be approached and addressing environmental zone concerns without issue.
Preces specifikācija
Maksimālā kravas pacelšanas spēja
140 t
140 t
Galvenā masta garums
12.8 m – 60 m
12.8 m – 60 m
Mastu pagarinājums
3.8 m – 32 m / 9 m – 19 m
3.8 m – 32 m / 9 m – 19 m
Maksimālais pacelšanas augstums
95 m
95 m
Maksimālais pretsvārstekļu svars
42.4 t
42.4 t
Iztvērēju bāzes
8.03 m x 7.50 m
8.03 m x 7.50 m
Cēlājvadu vilkšana
8.7 t
8.7 t
Maksimālais rādiuss
72 m
72 m
Izmēri
L: 14.90 m W: 2.75 m H: 3.99 m
L: 14.90 m W: 2.75 m H: 3.99 m
Asis
5
5
Dzinējs
Mercedes-Benz
Mercedes-Benz
Piedziņa
10 x 6 x 10 (10 x 8 x 10)
Lejupielādēt specifikāciju10 x 6 x 10 (10 x 8 x 10)
