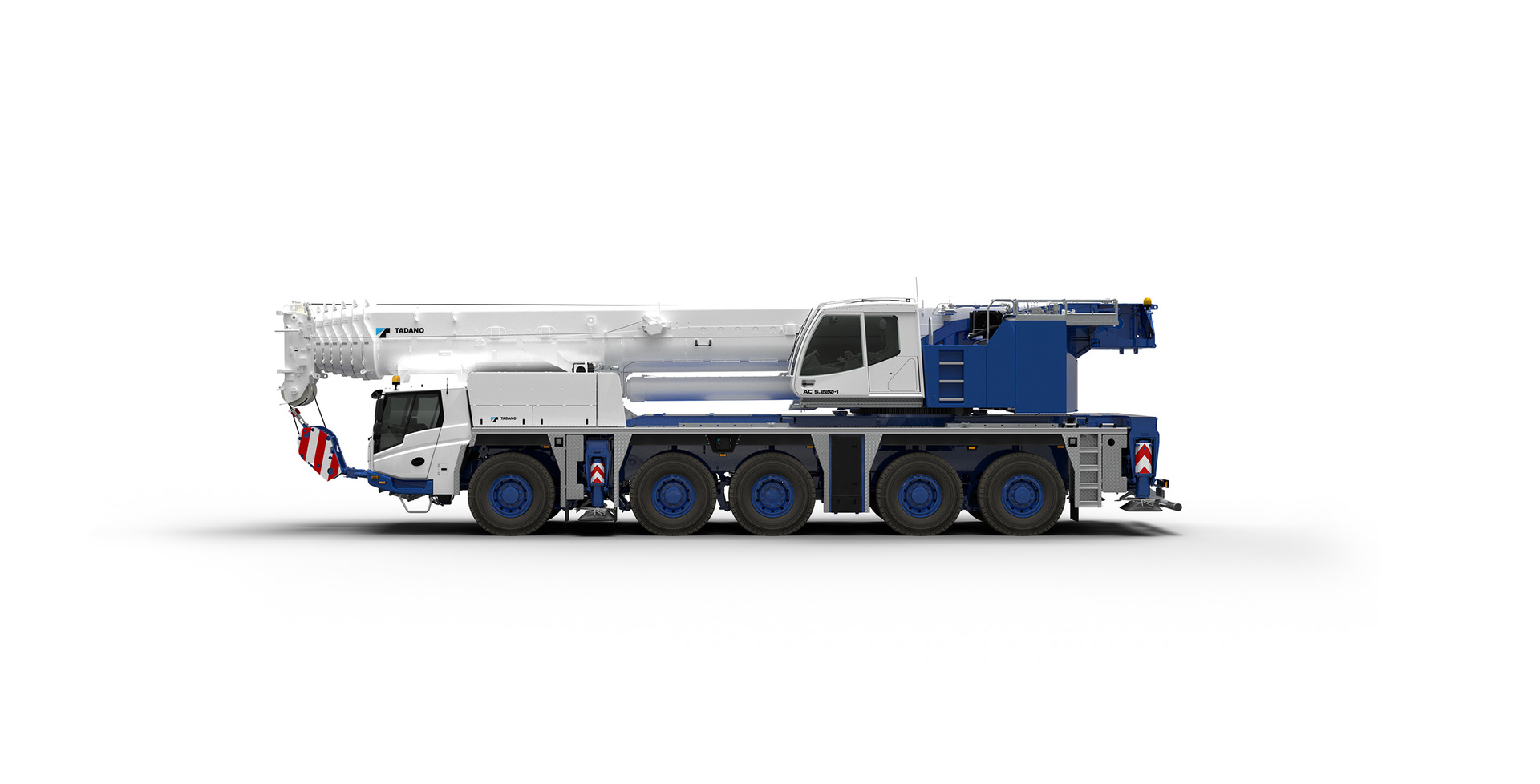

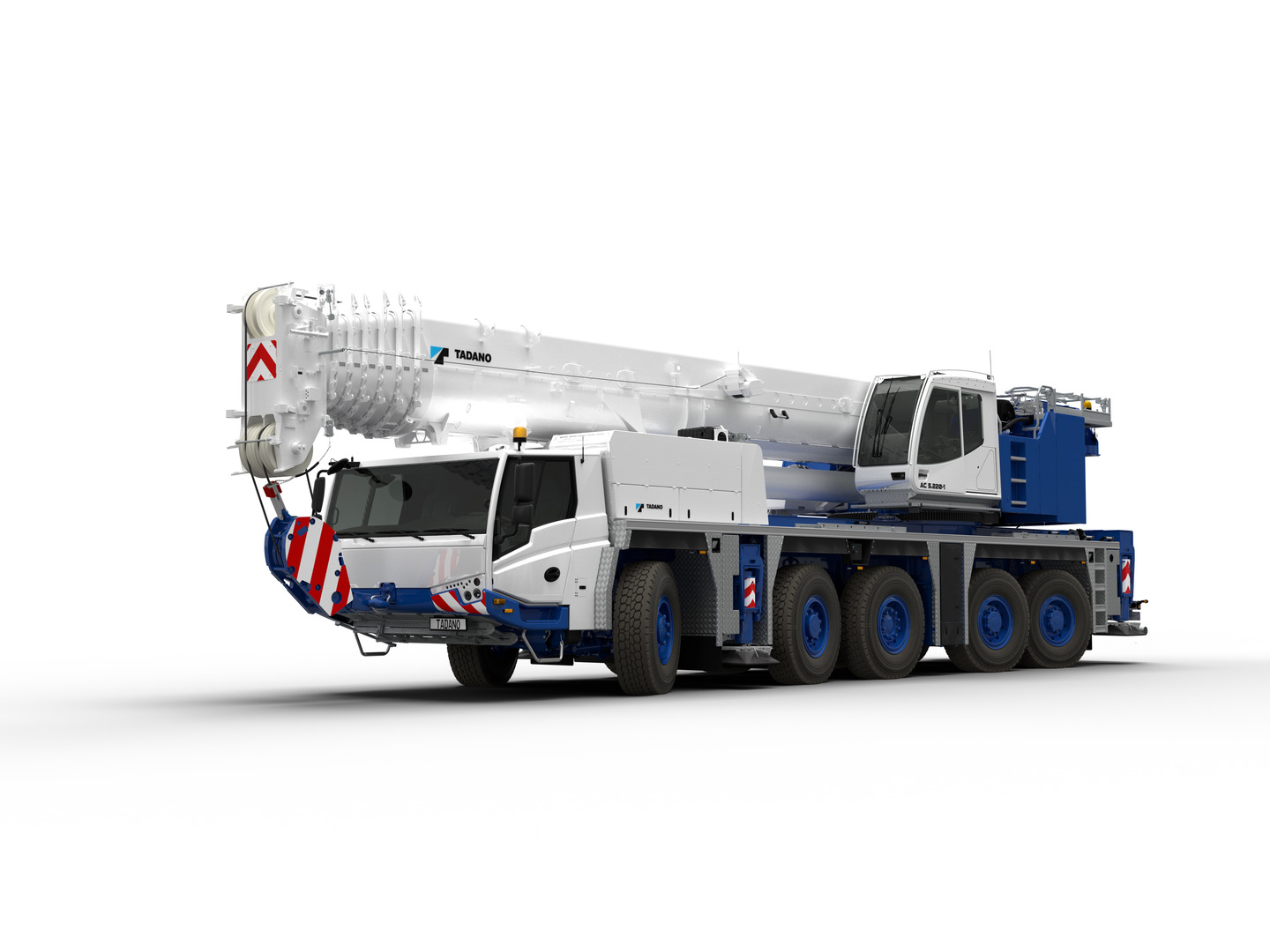

AC 5.220-1
Produkta apraksts
Power with Flexible Outriggers and Efficient Transport The powerful Tadano AC 5.220-1 can accommodate extremely high holding loads even in an intermediate area. Telescoping under load is possible up to 47.6t. It also boasts a lifting capacity up to 133t without auxiliary equipment. Remote control for the crane superstructure with a large display for relevant load data results in a high safety standard. Choose from five outrigger bases to match your site needs while taking advantage of technology that affords operation in inner cities and navigates strict environmental standards. Main boom disassembly allows drastic crane weight reduction, allowing for easier and cheaper logistics and transport.
Preces specifikācija
Maksimālā kravas pacelšanas spēja
220 t
220 t
Galvenā masta garums
13.2 m – 68 m
13.2 m – 68 m
Mastu pagarinājums
1.6 m / 5.8 m – 36 m / 10.4 m – 22.8 m
1.6 m / 5.8 m – 36 m / 10.4 m – 22.8 m
Maksimālais pacelšanas augstums
108 m
108 m
Maksimālais pretsvārstekļu svars
71 t
71 t
Iztvērēju bāzes
9.05 m x 8.30 m
9.05 m x 8.30 m
Cēlājvadu vilkšana
10.0 t
10.0 t
Maksimālais rādiuss
84 m
84 m
Izmēri
L: 15.40 m W: 3.00 m H: 3.99 m
L: 15.40 m W: 3.00 m H: 3.99 m
Asis
5
5
Dzinējs
Mercedes-Benz
Mercedes-Benz
Piedziņa
10 x 6 x 10 (10 x 8 x 10)
Lejupielādēt specifikāciju10 x 6 x 10 (10 x 8 x 10)
