AC 5.250-1
Produkta apraksts

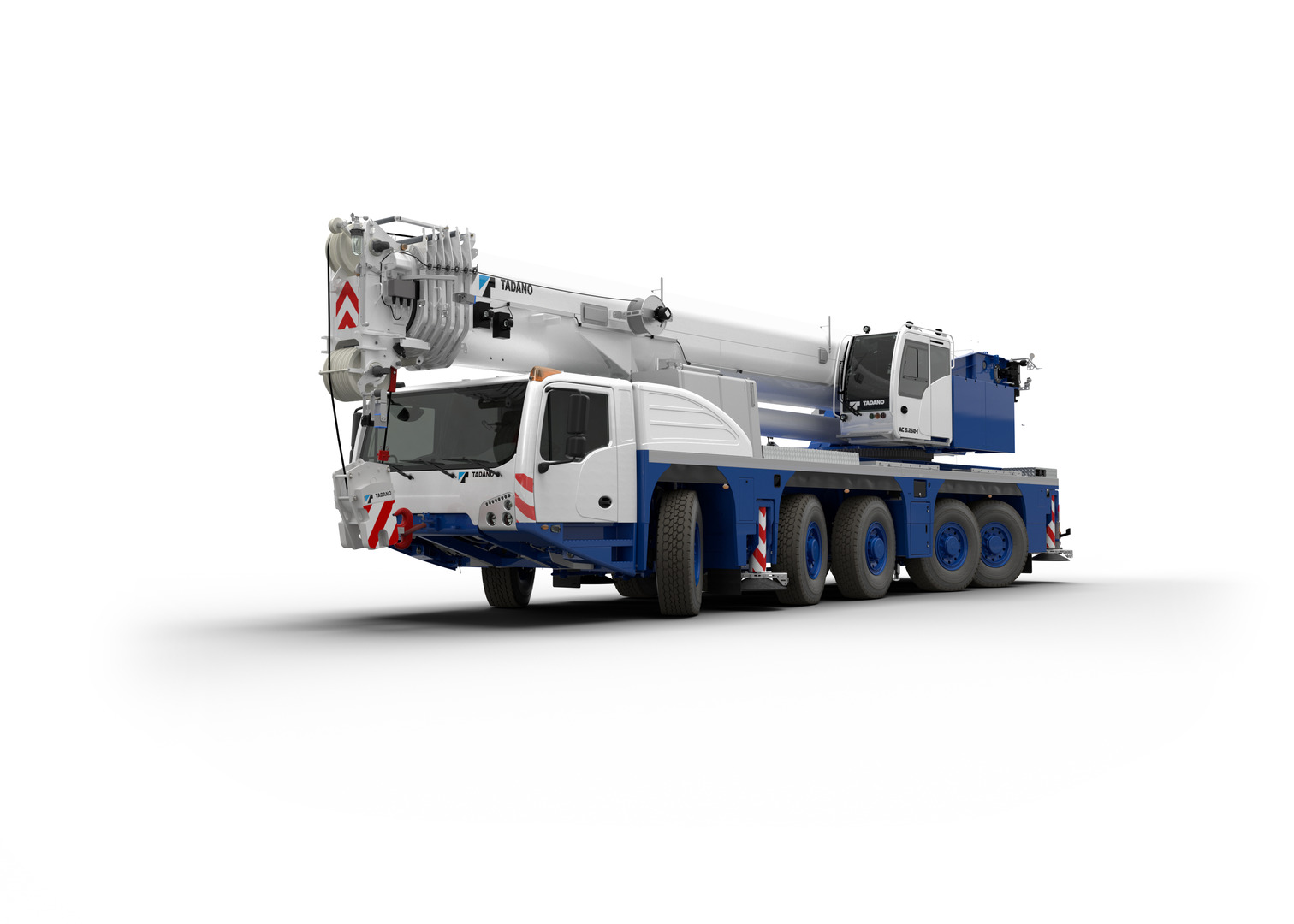

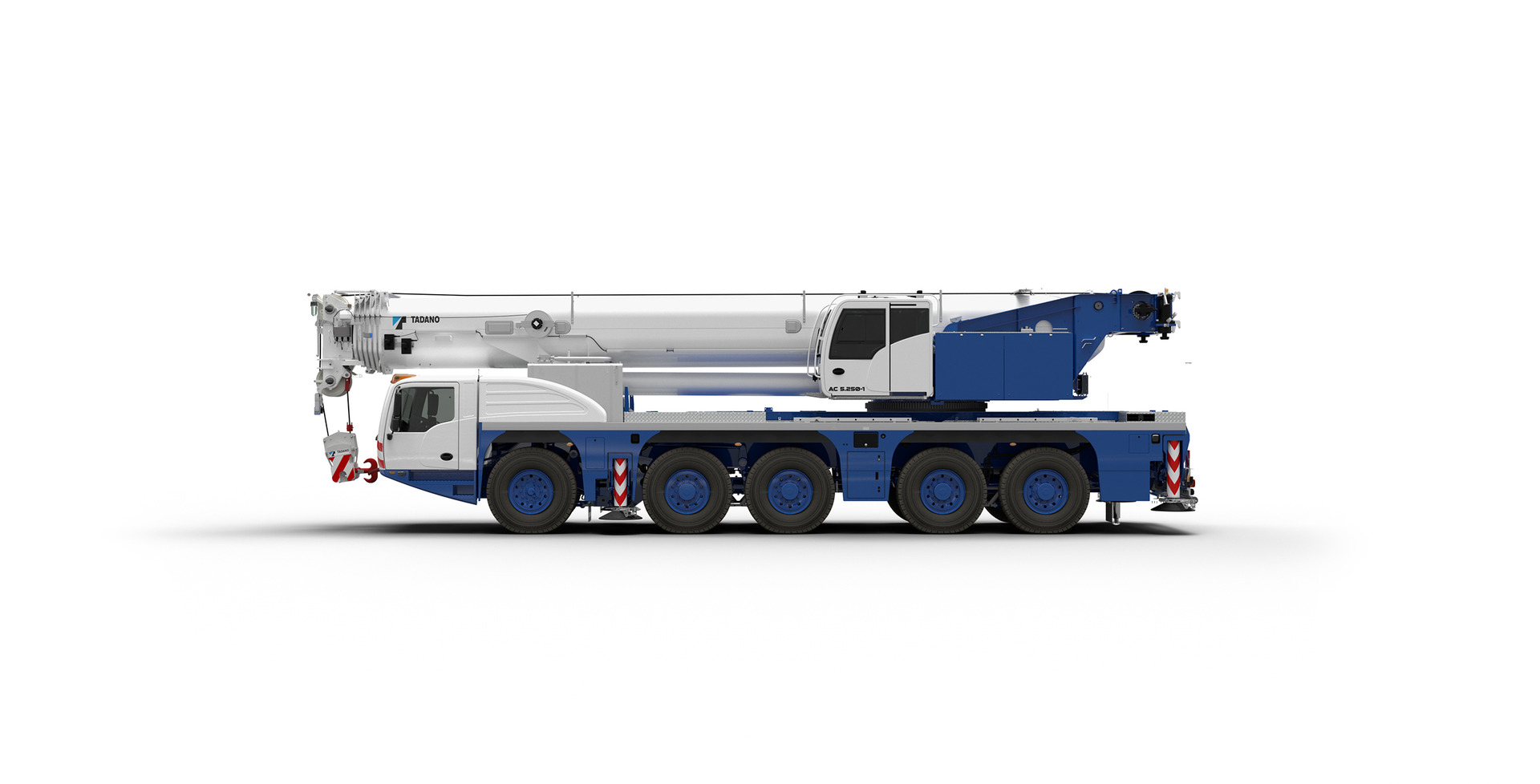

Small Dimensions, High Maneuverability and Performance The AC 5.250-1 manages to pack high performance into the most compact crane in its capacity class. Easily transported with clean axle load distribution, it stays under the 12t axle load limit while still able to carry 550kg of payload and everything it needs to get working. With a total length of 14.49m, the AC 5.250-1’s 5-axle steering, independent rear axle steering, and dynamic launch control allows it to maneuver nearly any job site. Quick setup saves time, while the single engine concept, start-stop function, intelligent motor management system, and shared components all reduce operational costs and maintenance.
Preces specifikācija
Maksimālā kravas pacelšanas spēja
250 t
250 t
Galvenā masta garums
12.7 m – 70 m
12.7 m – 70 m
Mastu pagarinājums
1.6 m / 11 m – 45 m
1.6 m / 11 m – 45 m
Maksimālais pacelšanas augstums
111 m
111 m
Maksimālais pretsvārstekļu svars
70.2 t
70.2 t
Iztvērēju bāzes
8.86 m x 8.40 m
8.86 m x 8.40 m
Cēlājvadu vilkšana
9.9 t
9.9 t
Maksimālais rādiuss
78 m
78 m
Izmēri
L: 14.49 m W: 3.00 m H: 3.94 m
L: 14.49 m W: 3.00 m H: 3.94 m
Asis
5
5
Dzinējs
Scania
Scania
Piedziņa
10 x 6 x 10 (10 x 8 x 10)
Lejupielādēt specifikāciju10 x 6 x 10 (10 x 8 x 10)
