AC 7.450-1
Produkta apraksts

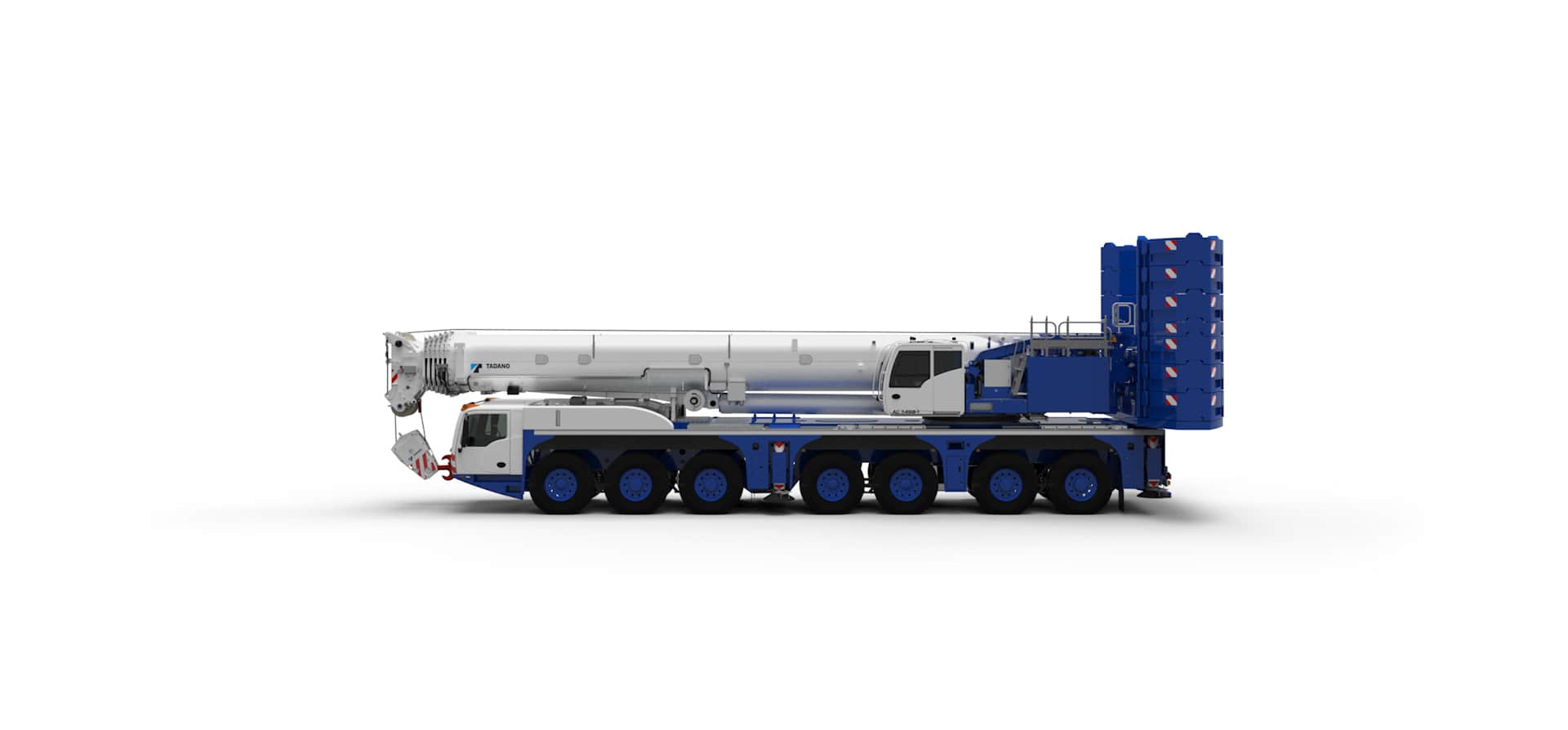

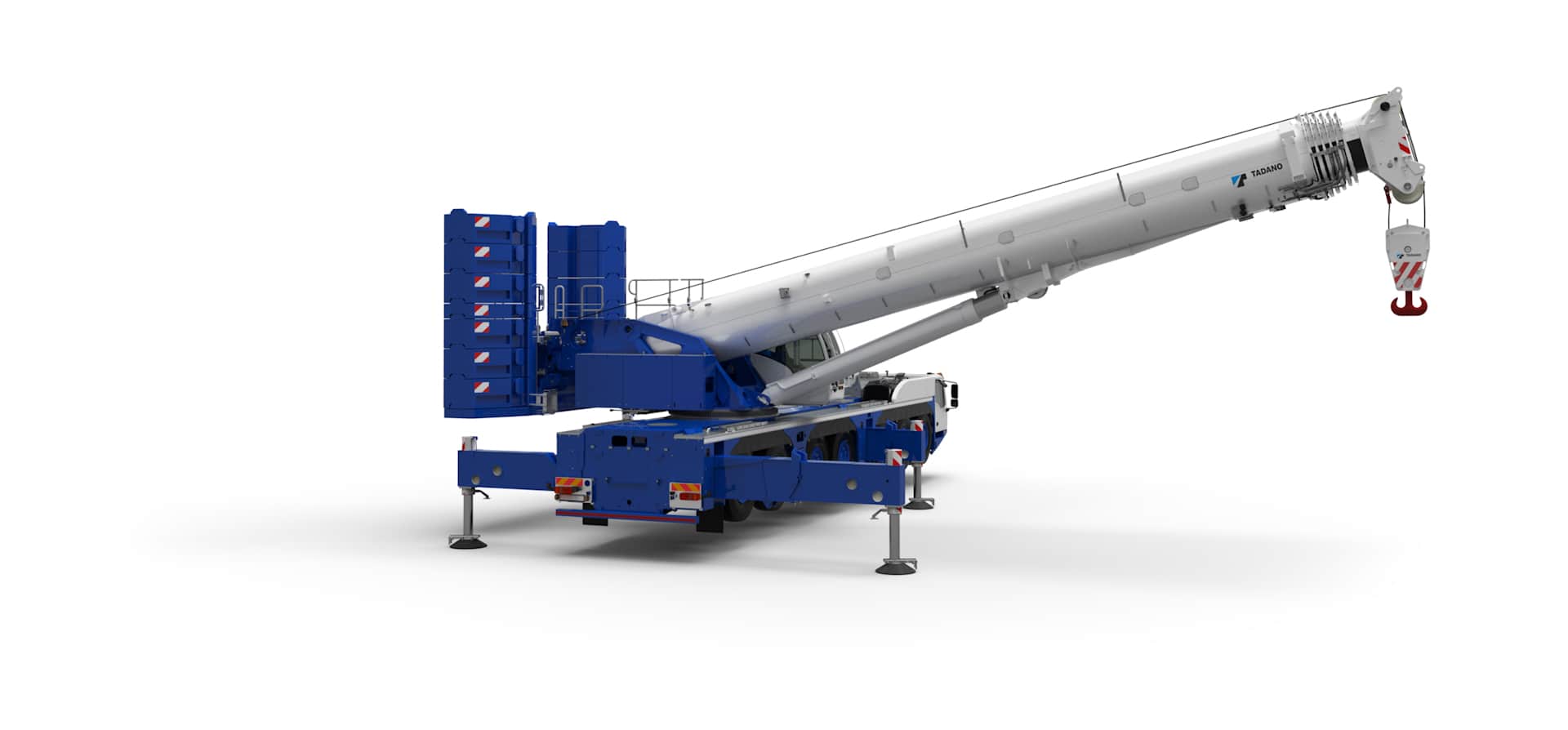

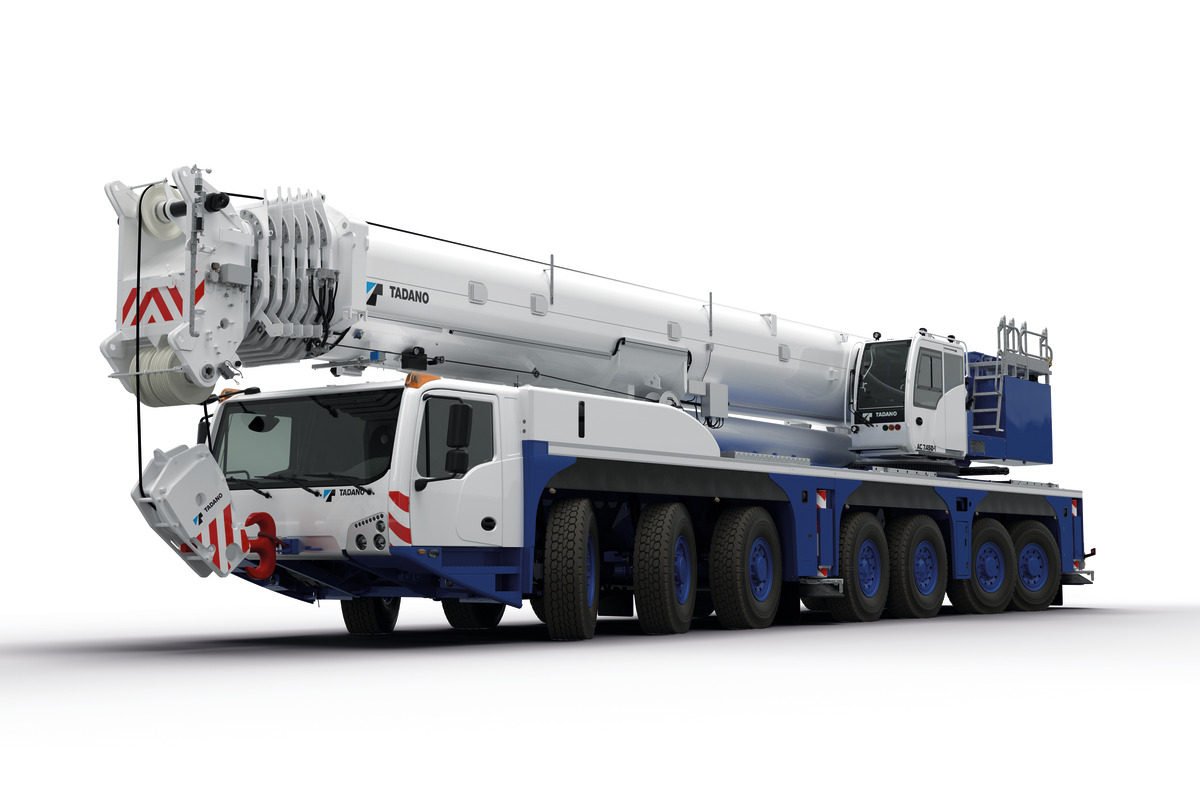

Benchmark on 7 Axles The AC 7.450-1 combines the size advantages of a six-axle crane with the power and performance of an eight-axle. With a main boom length of 80m / 262.5 ft, it boasts the longest reach of all 6- and 7-axle all terrain cranes. Its compact size, comparable to 400t / 440 USt 6-axle models, gives it best-in-class jobsite accessibility. Enjoy an efficient rigging process and outstanding lifting performance, with a capacity of 23.7t / 26.1 USt without Sideways Superlift system (SSL) and 37.3t / 41.4 USt with SSL. Six cameras mounted on the AC 7.450-1 keep everything in view.
Preces specifikācija
Maksimālā kravas pacelšanas spēja
450 t
450 t
Galvenā masta garums
14.8 m – 80 m
14.8 m – 80 m
Mastu pagarinājums
3 m / 8 m – 59 m / 24 m – 81 m
3 m / 8 m – 59 m / 24 m – 81 m
Maksimālais pacelšanas augstums
128 m
128 m
Maksimālais pretsvārstekļu svars
150 t
150 t
Iztvērēju bāzes
8.25 m x 8.45 m
8.25 m x 8.45 m
Cēlājvadu vilkšana
11.8 t
11.8 t
Maksimālais rādiuss
98 m
98 m
Izmēri
L: 17.62 m W: 3.00 m H: 3.94 m
L: 17.62 m W: 3.00 m H: 3.94 m
Asis
7
7
Dzinējs
Mercedes-Benz
Mercedes-Benz
Piedziņa
14 x 8 x 14
Lejupielādēt specifikāciju14 x 8 x 14
