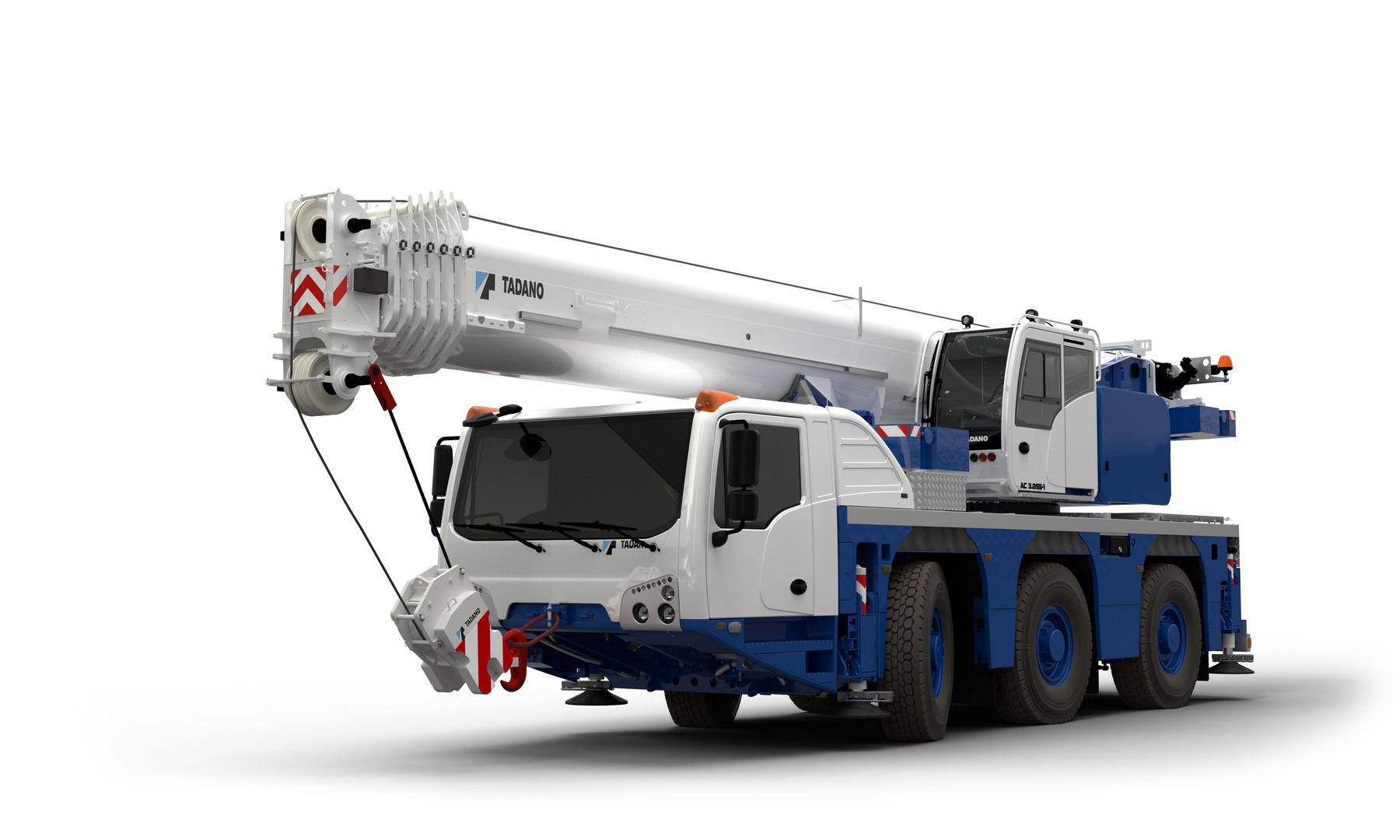

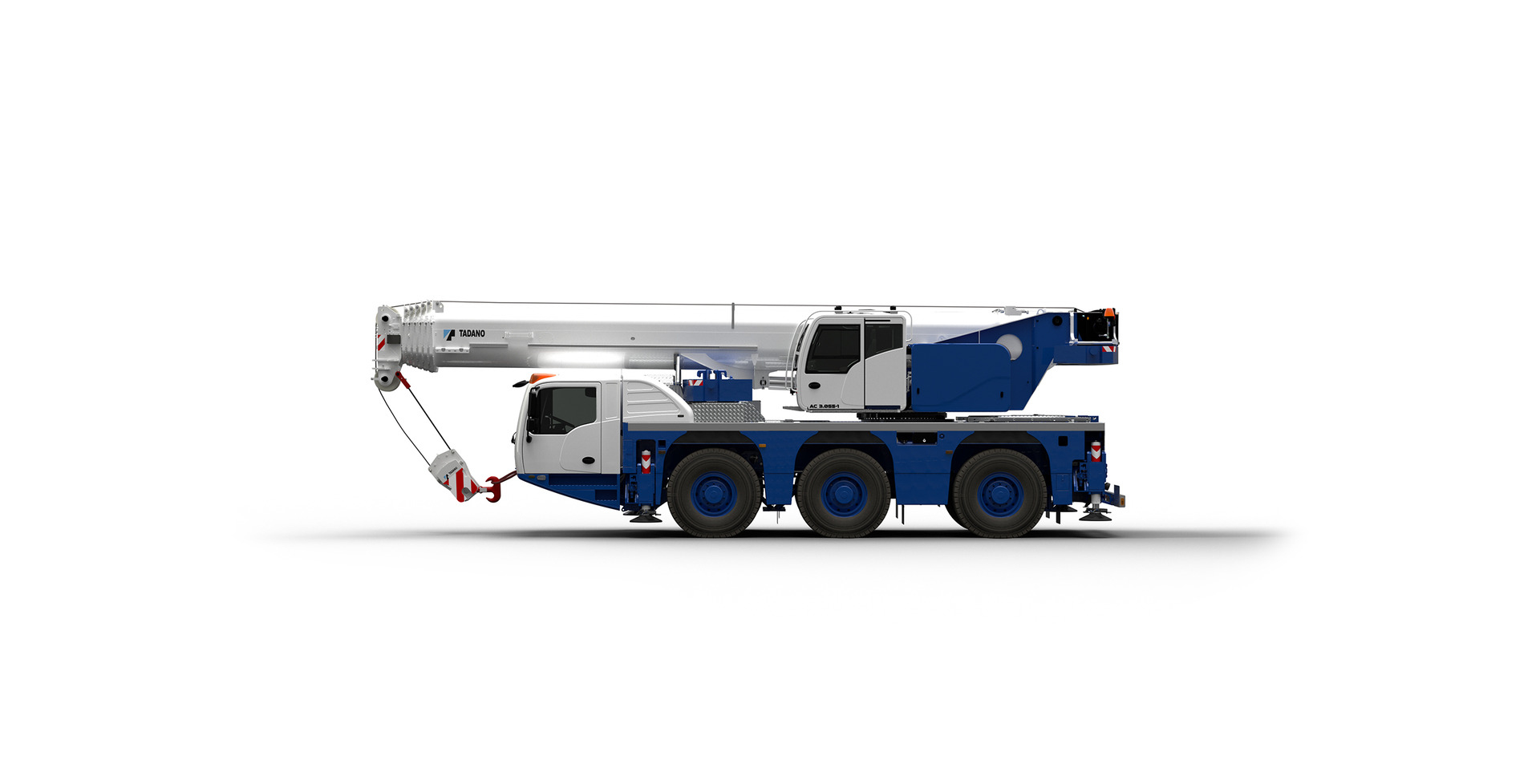

AC 3055-1
Produkta apraksts
Productive Innovations Mean Long Reach, Easy Handling The AC 3.055-1 hits the road with ease and incorporates innovative technologies to handle the toughest conditions. Everything aboard the AC 3.055-1 can be handled by a single individual; fully equipped and roadable within 12t axle load, extra transport is rarely necessary. Since it already carries everything it needs to get working, on-site setup can be handled quickly and smoothly. The 50m single cylinder telescoping system provides the world’s longest telescopic boom on a fully roadable, 3-axle all terrain crane. Flex Base with stepless outrigger positioning offers outstanding versatility and improved performance for HA, MS, and telescopable loads.
Preces specifikācija
Maksimālā kravas pacelšanas spēja
55 t
55 t
Galvenā masta garums
10.3 m – 50 m
10.3 m – 50 m
Mastu pagarinājums
1 m
1 m
Maksimālais pacelšanas augstums
54 m
54 m
Maksimālais pretsvārstekļu svars
6 t
6 t
Iztvērēju bāzes
6.90 m x 6.50 m
6.90 m x 6.50 m
Cēlājvadu vilkšana
6.8 t
6.8 t
Maksimālais rādiuss
38 m
38 m
Izmēri
L: 11.50 m W: 2.55 m H: 3.61 m
L: 11.50 m W: 2.55 m H: 3.61 m
Asis
3
3
Dzinējs
Mercedes-Benz
Mercedes-Benz
Piedziņa
6 x 4 x 6 (6 x 6 x 6)
Lejupielādēt specifikāciju6 x 4 x 6 (6 x 6 x 6)
