AC 3.060-1
Produkta apraksts

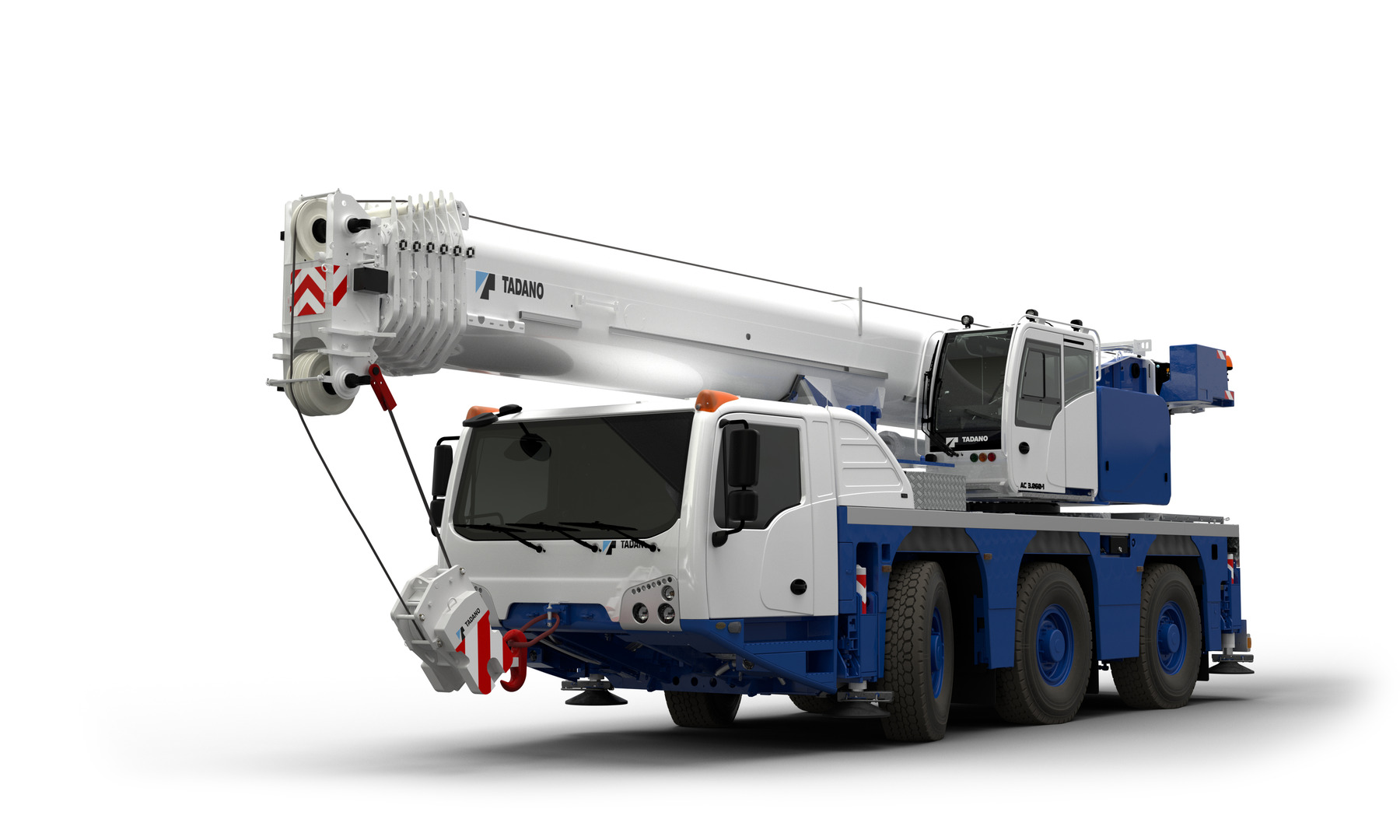

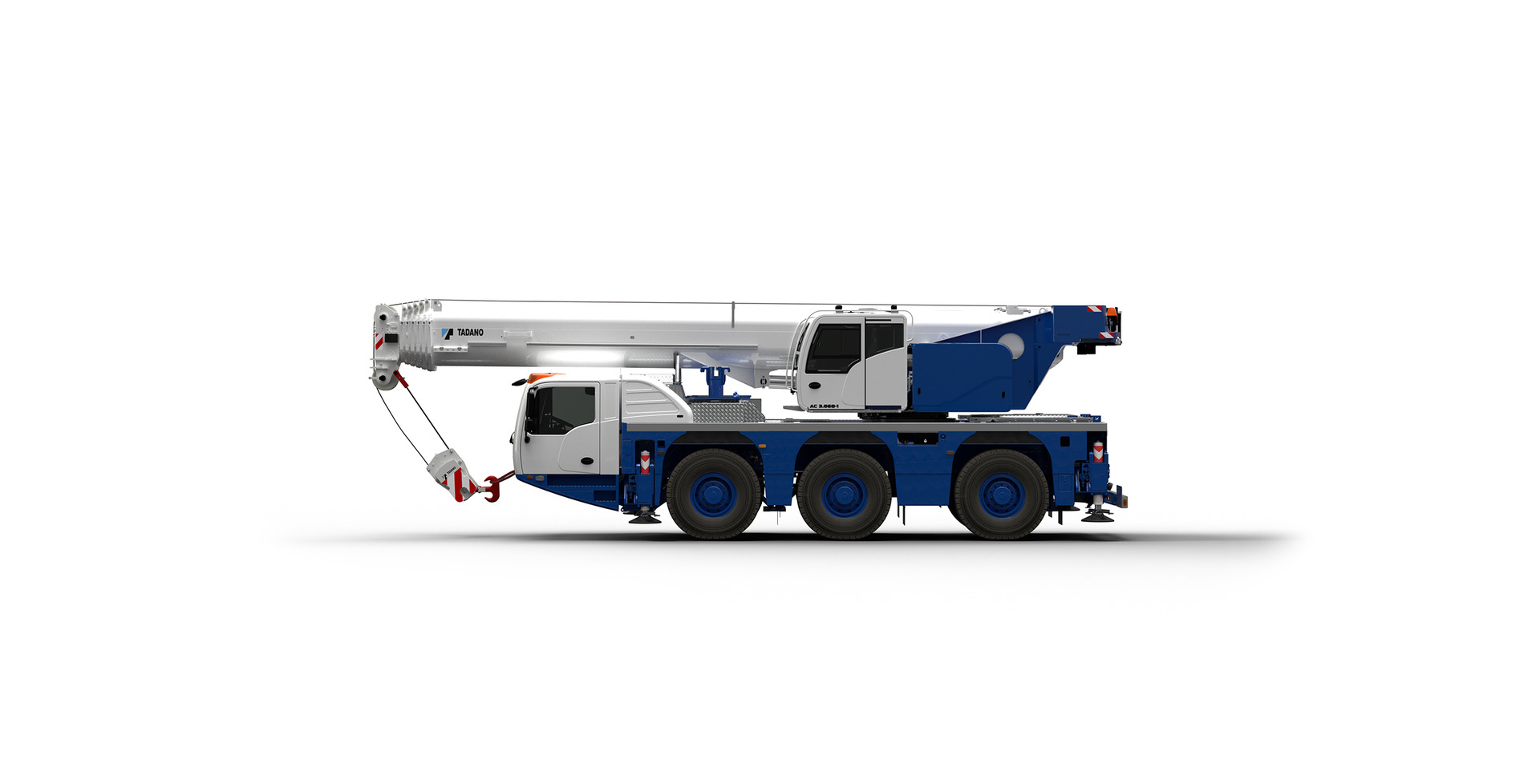

Reliable Efficiency with a Long Telescopic Boom The AC 3.060-1 combines compact flexibility, high transportability, and ease-of-use with the world’s longest telescopic boom on a fully roadable, 3-axle all terrain crane. The single cylinder telescoping system reaches 50m with an optional extension increasing that reach to 66m, outperforming all other cranes in its class. The automatic counterweight rigging system enables quick and easy setup, even via remote control outside the superstructure cab. Flex Base with stepless outrigger positioning grants outstanding versatility and performance. The AC 3.060-1 blends Tadano’s noted reliability with efficiency, as everything aboard this machine can be handled by just one person.
Preces specifikācija
Maksimālā kravas pacelšanas spēja
60 t
60 t
Galvenā masta garums
10.4 m – 50 m
10.4 m – 50 m
Mastu pagarinājums
1.5 m / 9 m – 16 m
1.5 m / 9 m – 16 m
Maksimālais pacelšanas augstums
69 m
69 m
Maksimālais pretsvārstekļu svars
12.1 t
12.1 t
Iztvērēju bāzes
6.90 m x 6.50 m
6.90 m x 6.50 m
Cēlājvadu vilkšana
6.8 t
6.8 t
Maksimālais rādiuss
44 m
44 m
Izmēri
L: 11.67 m W: 2.55 m H: 3.61 m
L: 11.67 m W: 2.55 m H: 3.61 m
Asis
3
3
Dzinējs
Mercedes-Benz
Mercedes-Benz
Piedziņa
6 x 4 x 6 (6 x 6 x 6)
Lejupielādēt specifikāciju6 x 4 x 6 (6 x 6 x 6)
