AC 5.120-1
Produkta apraksts

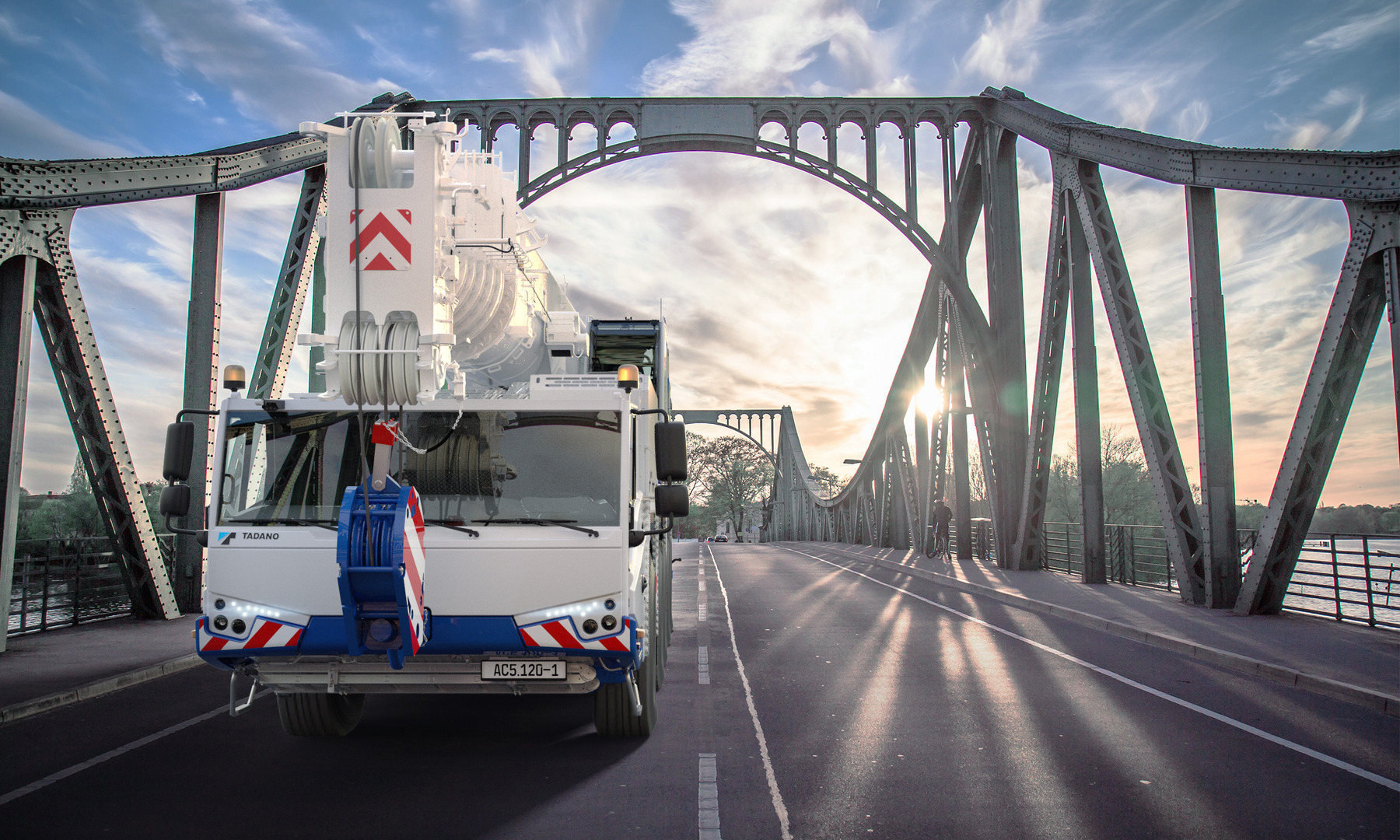

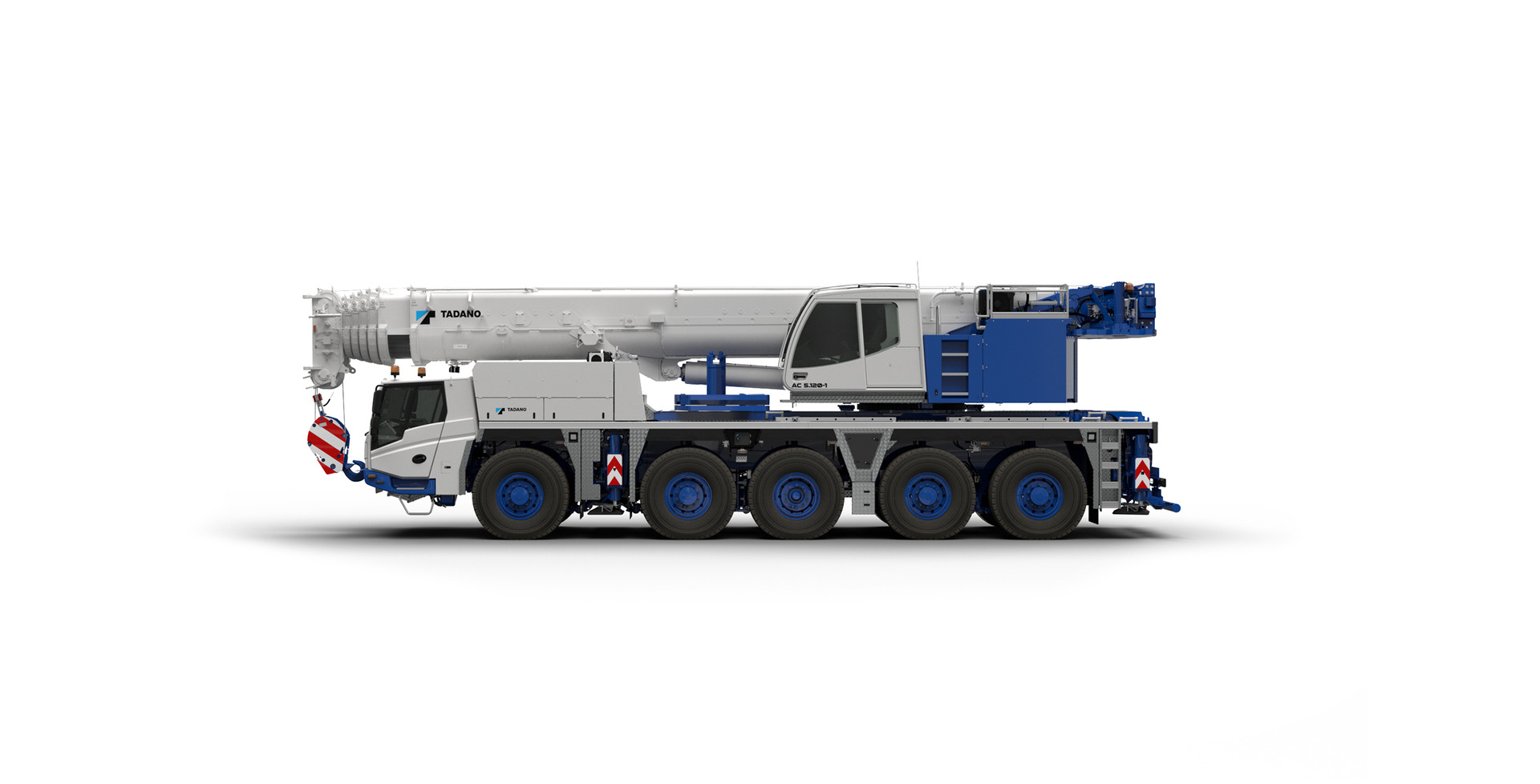

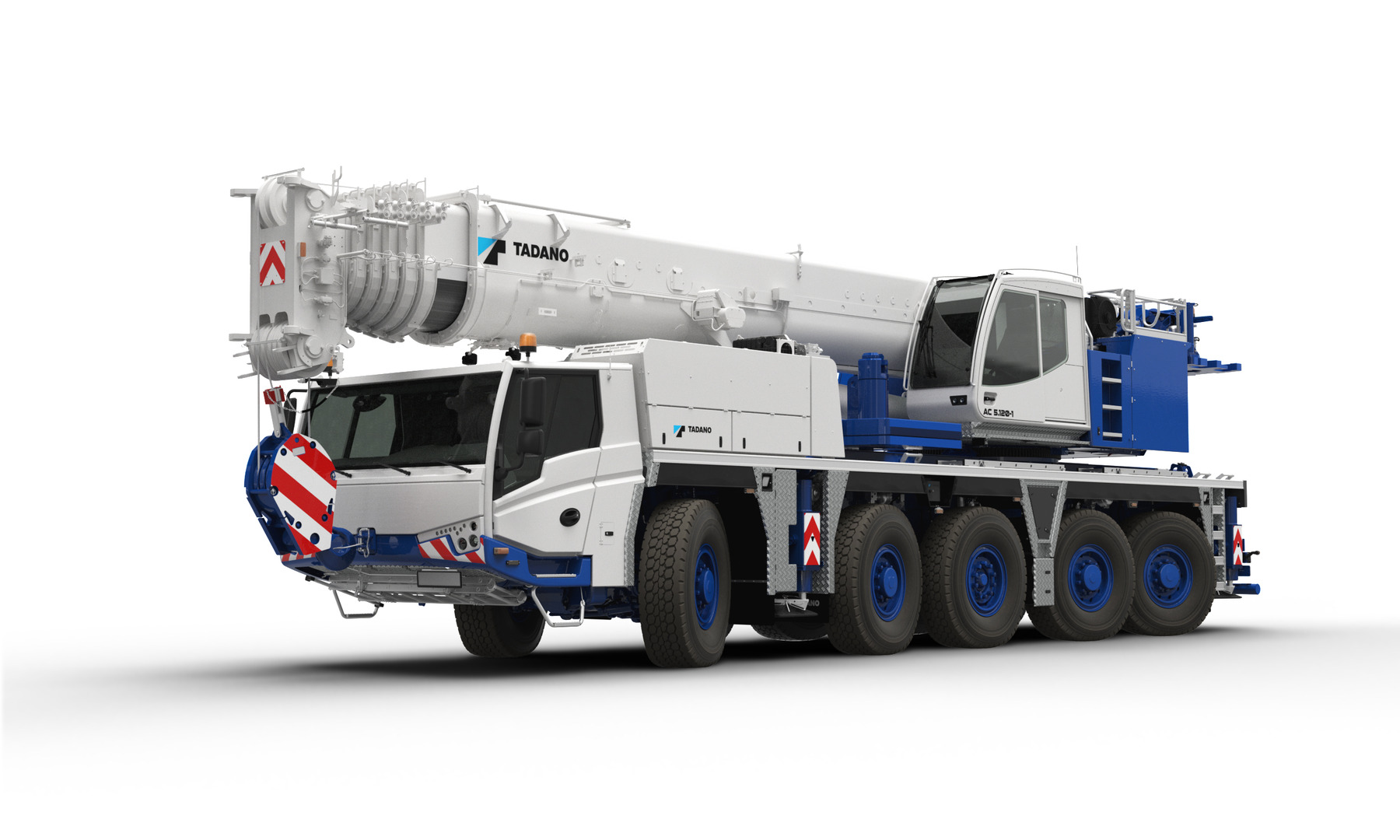

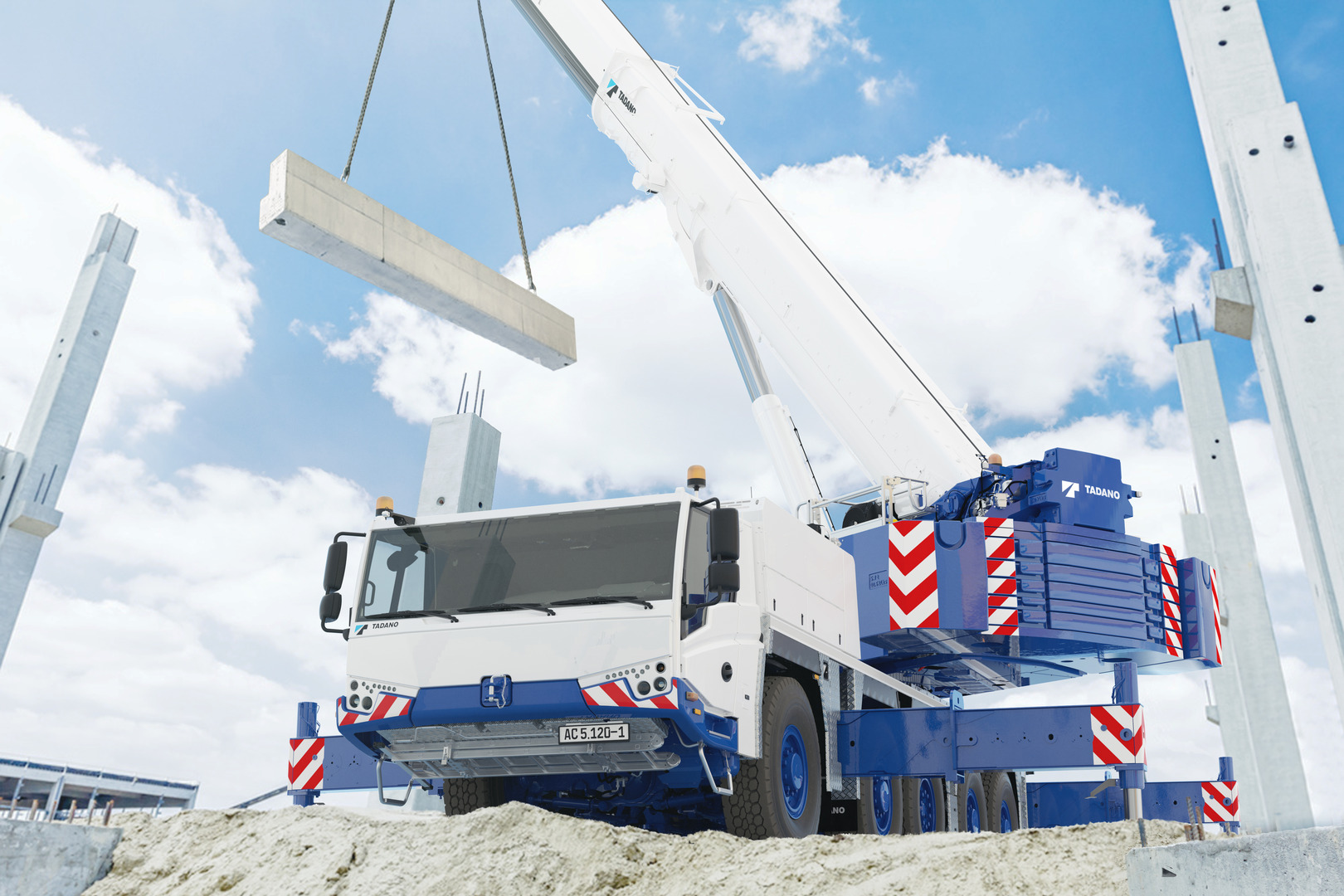

A versatile all-rounder Thanks to a reinforced 60-meter main boom, the AC 5.120-1 reaches extraordinary lifting capacities. The crane can travel on roads while remaining under a ten-tonne axle load limit and a total weight of 48 tonnes. The AC 5.120-1 remains at a slender width of 2.75 m even with 24 tonnes of counterweight and maintains a counterweight tailswing radius of only 4 m with the full 35.4 tonnes of counterweight. Thanks to the superstructure shared with the AC 4.110-1, 80% of the counterweights for both cranes are interchangeable, as are the boom extensions, including one with reduced complexity. The Lift Adjuster reliably reduces load swinging during lifting and lowering.
Preces specifikācija
Maksimālā kravas pacelšanas spēja
120 t
120 t
Galvenā masta garums
11.4 m – 60 m
11.4 m – 60 m
Mastu pagarinājums
3.7 m / 10.1 m -17.9 m / 24.9 m – 31.9 m / 9 m – 19 m
3.7 m / 10.1 m -17.9 m / 24.9 m – 31.9 m / 9 m – 19 m
Maksimālais pacelšanas augstums
96 m
96 m
Maksimālais pretsvārstekļu svars
35.4 t
35.4 t
Iztvērēju bāzes
8.07 m x 7.50 m
8.07 m x 7.50 m
Cēlājvadu vilkšana
8.7 t
8.7 t
Maksimālais rādiuss
68 m
68 m
Izmēri
L: 13.53 m W: 2.75 m H: 3.99 m
L: 13.53 m W: 2.75 m H: 3.99 m
Asis
5
5
Dzinējs
Mercedes-Benz
Mercedes-Benz
Piedziņa
10 x 6 x 10 (10 x 8 x 10)
Lejupielādēt specifikāciju10 x 6 x 10 (10 x 8 x 10)
